4-Color Servo Sleeve Flexo Printing Machine for PE BOPP CPP Film Paper Non-Woven Bags
MJUT series 4-color servo sleeve flexo printing machine is equipped with integrated online dust removal, printing, and die-cutting capabilities. By consolidating multiple functions into a single unit, it is capable of handling complex, multi-stage processes while minimizing manual intervention. Utilizing eco-friendly printing technologies—and supporting the use of either water-based or UV inks—it has garnered significant favor among manufacturers in industries with stringent environmental standards, such as food and pharmaceutical packaging.
- Description
- Feature
- Parameters
- Application
- Details Display
- Q&A
Description
This flexographic printing machine from the MJUT series features a full-servo, sleeve-based design. It is capable of fully meeting the printing requirements of manufacturers—producing items such as coffee paper cups, adult and baby diapers, non-woven shopping bags for fruit storage, and paper jewelry boxes—across a wide variety of materials, including PE, BOPP, CPP film, paper, and non-woven fabrics, demonstrating exceptional material adaptability.
Feature
- Configured with integrated online dust removal, printing, and die-cutting functions to meet the requirements of multi-process integration.
- Employs eco-friendly printing processes, supporting the use of either water-based or UV inks.
- Utilizes high-quality ceramic anilox rollers, ensuring exceptional durability and uniform, stable ink delivery.
- Offers a variety of drying methods, including hot air, infrared (IR), and UV drying.
- Features a closed-loop tension control system to ensure superior printing tension stability and enhanced registration accuracy.
- Equipped with an automatic electronic web guiding system, minimizing the need for manual intervention.
Fitted with a Video Inspection System to ensure high-precision printing.
Parameters
| Model | MJUT Series |
| Max Web Width | 650/850/1050/1350 mm |
| Max Printing Width | 600/800/1000/1300 mm |
| Print Repeat Range | 250mm-800mm |
| Colordecks | 4 colors(depend on clients' needs) |
| Max Printing Speed | 160-200 m/min |
| Precision | ±0.1 mm |
| Rewinding Diameter | 800 mm |
| Unwinding Diameter | 800 mm |
Application
Case-1: Film
Such as Potato Chips Packaging Film, Chocolate Bar Wrapper Film, Instant Noodles Packaging Film, Shampoo Sachet Film, Laundry Detergent Packaging Film, Wet Wipes Packaging Film, Milk Packaging Film, Beverage Packaging Film, Stand Up Pouch for Snacks, Spout Pouch Film for Juice, Vacuum Bag Film for Meat and so on.
Potato Chips Packaging Film
Spout Pouch Film for Juice
Wet Wipes Packaging Film
Case-2: Paper
Such as Paper Cup Printing, Paper Bowl Printing, Hamburger Wrapping Paper, Sandwich Wrapping Paper, Kraft Paper Bags, Shopping Paper Bags, Paper Placemats, Paper Table Cover, Paper Napkin and so on.
Hamburger Wrapping Paper
Paper Cup
Paper Napkin
Case-3: Non-Woven Fabric
Such as Non Woven Shopping Bags, Surgical Mask Non Woven Fabric, Disposable Medical Gown Fabric, Sanitary Napkin Non Woven Fabric, Bed Sheet Non Woven Fabric and so on.
Bed Sheet Non Woven Fabric
Non Woven Shopping Bags
Surgical Mask Non Woven Fabric
Details Display
 |  |

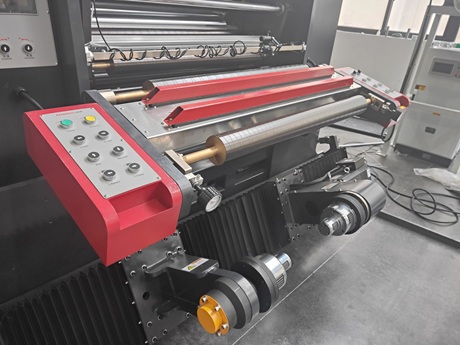

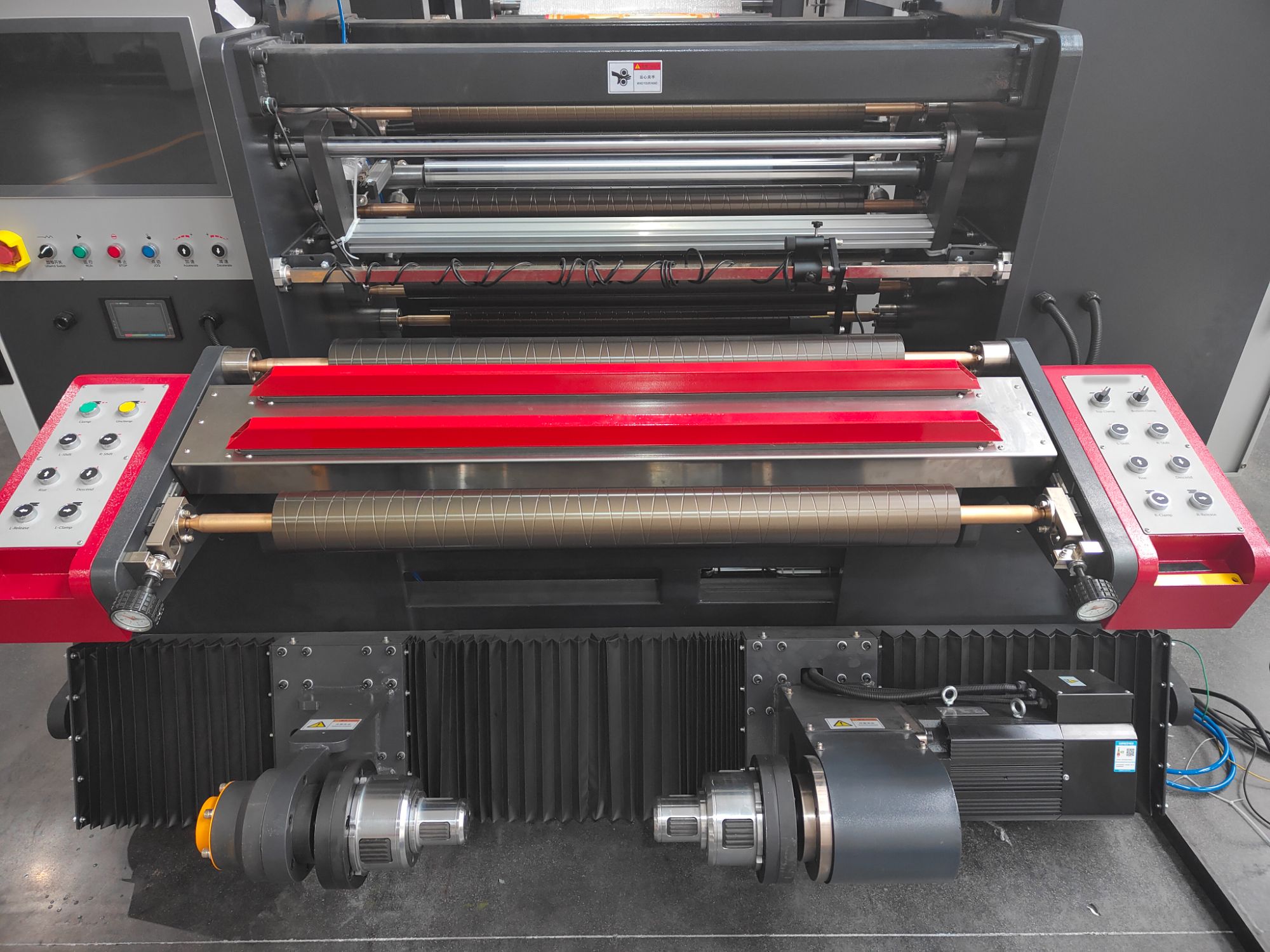

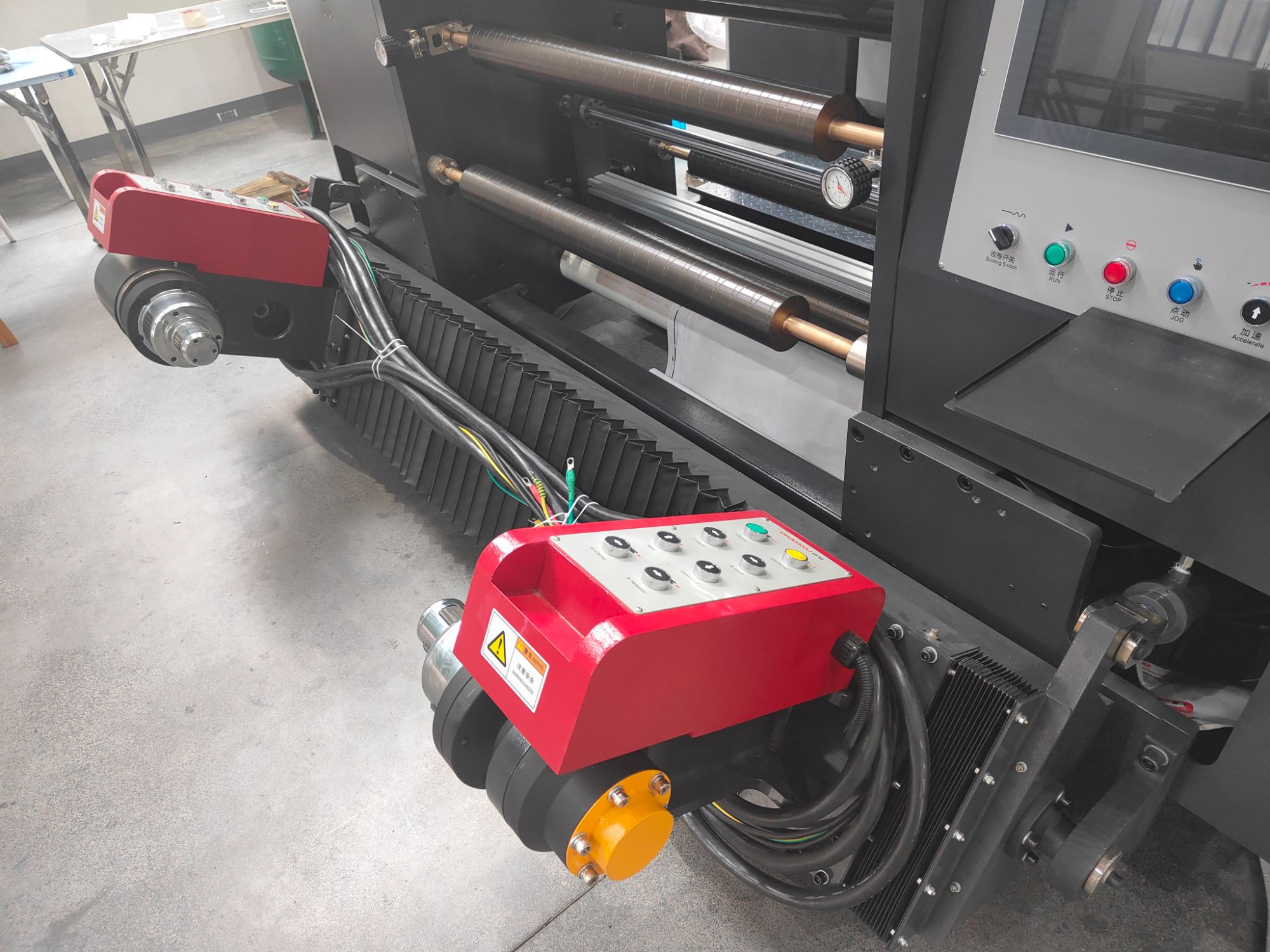

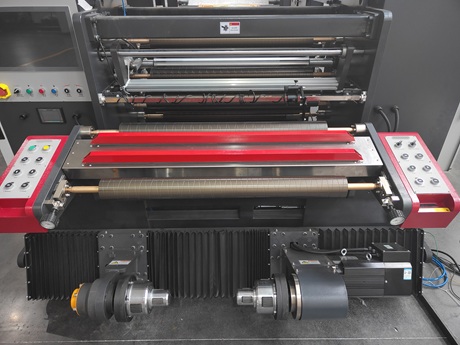

| Unwinding Unit of Inline Flexo Press for Chocolate Bar Wrapper Film | |
 |  |

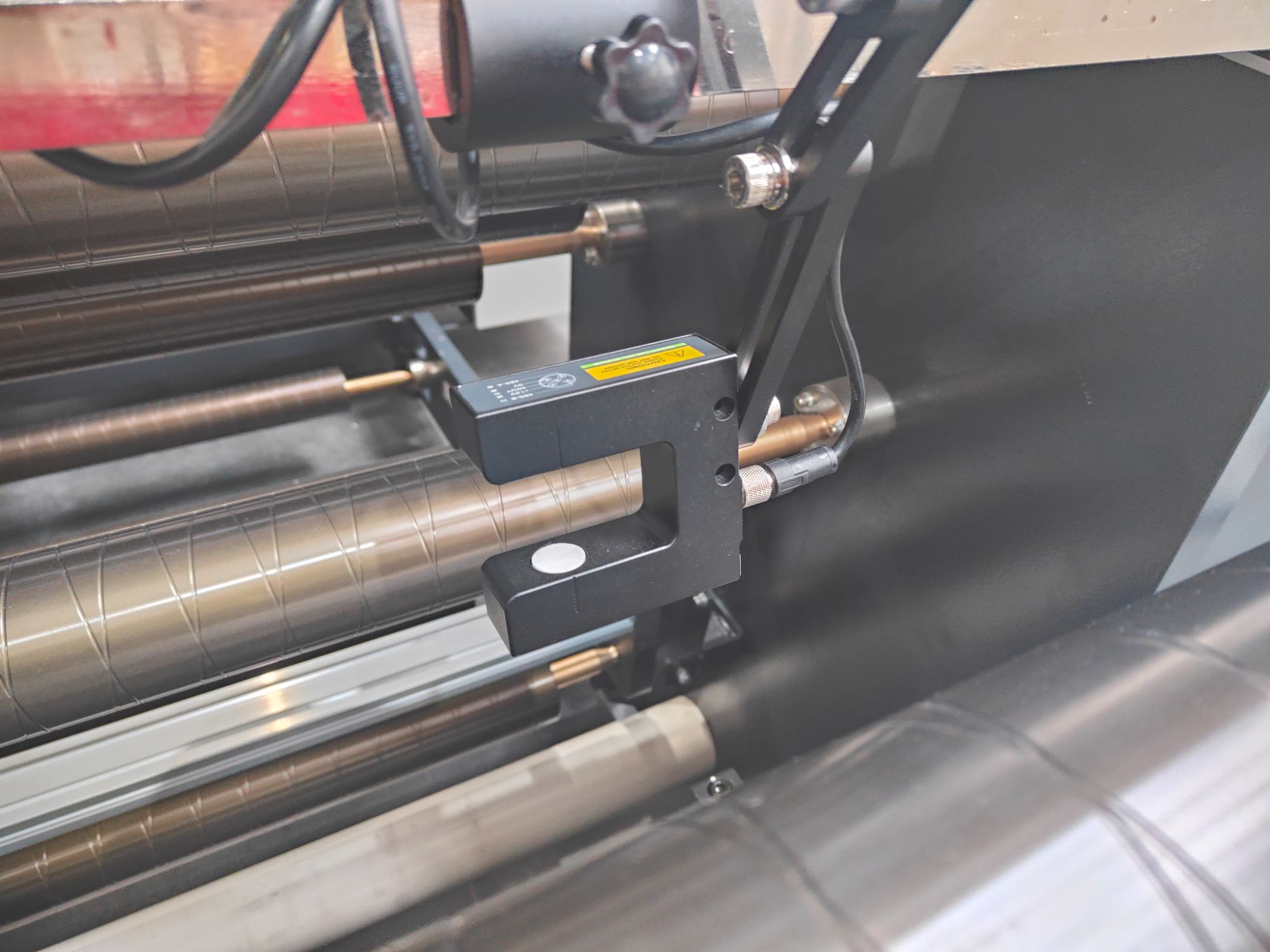

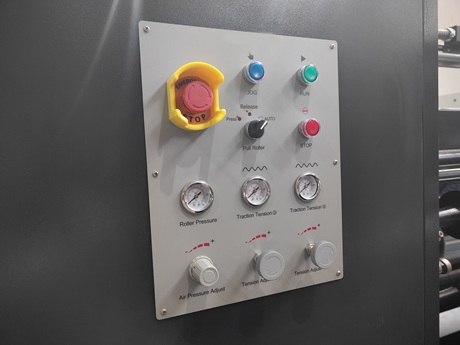

| Auto Web Guide System of Inline Flexo Press for Labels | Tension Controller of Inline Flexo Printing Machine |
 |  |

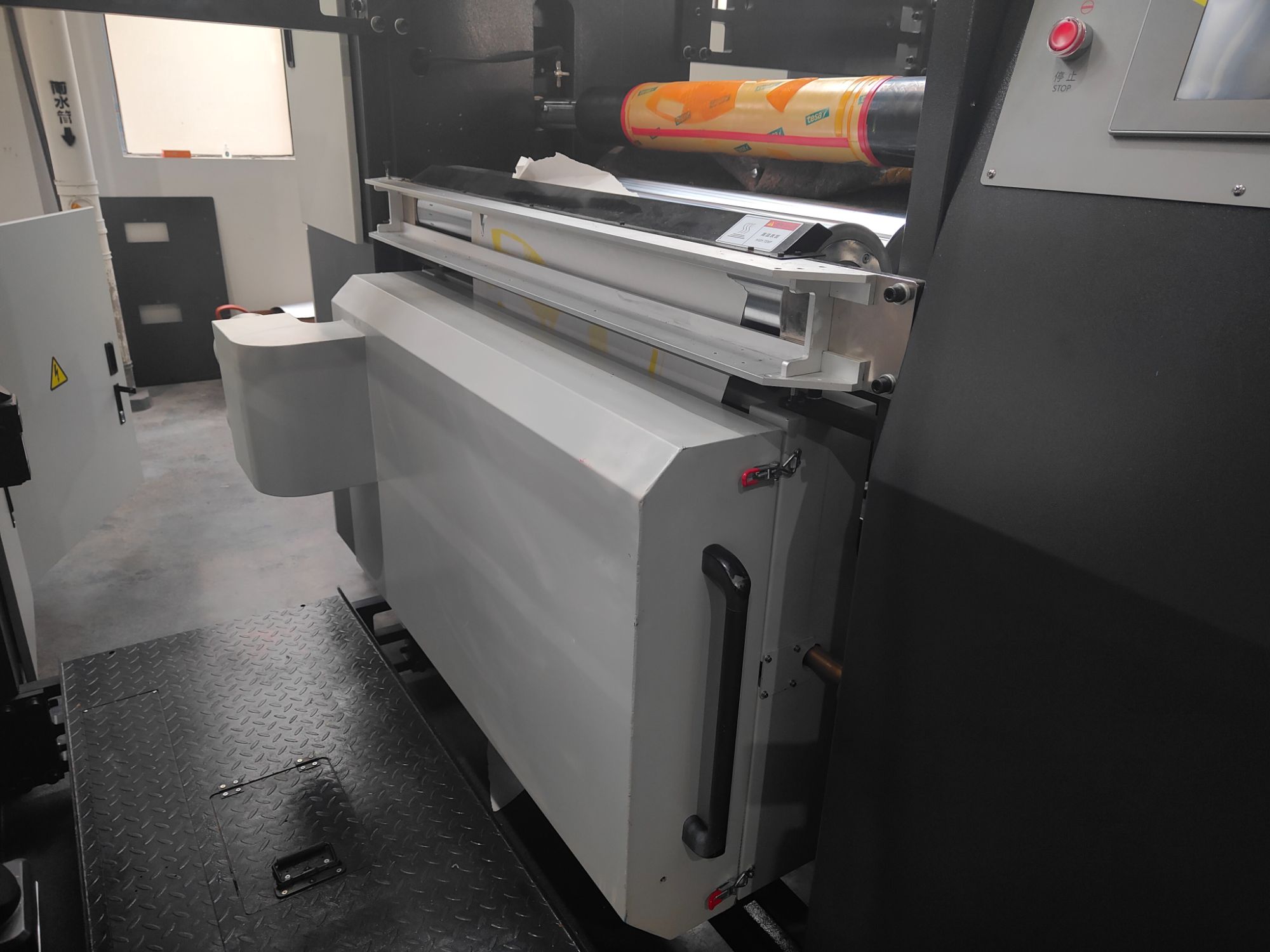

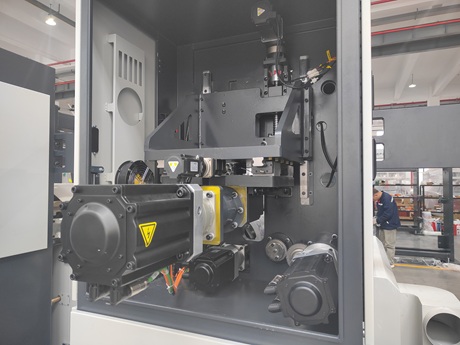

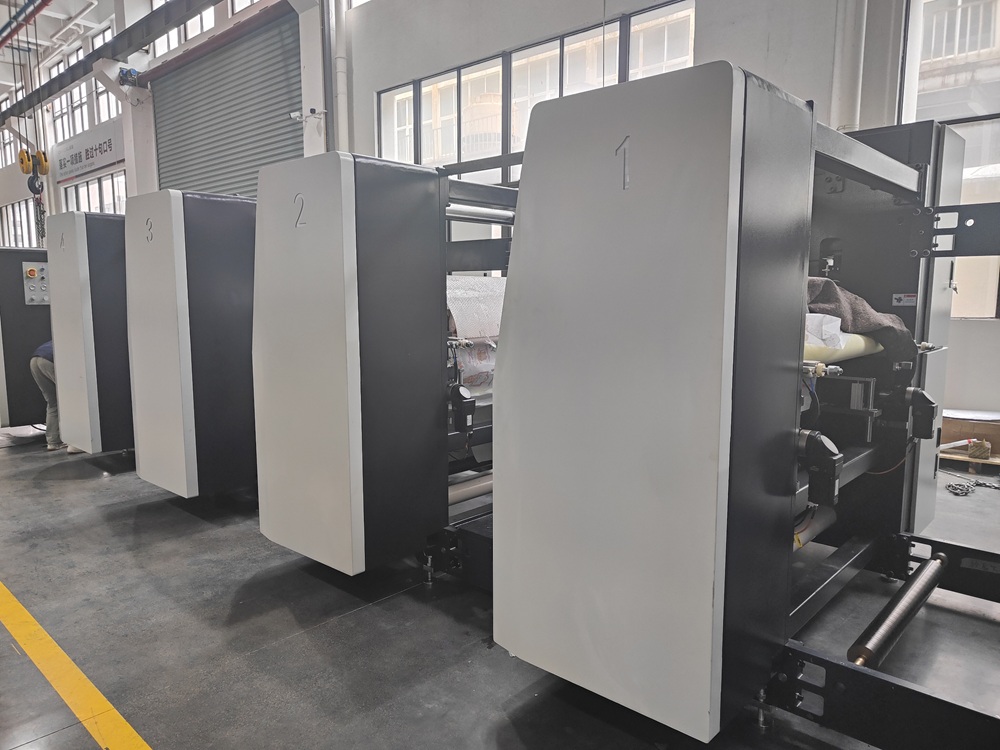

| Printing Unit of Inline Flexo Press for Shopping Paper Bags | |
 |  |

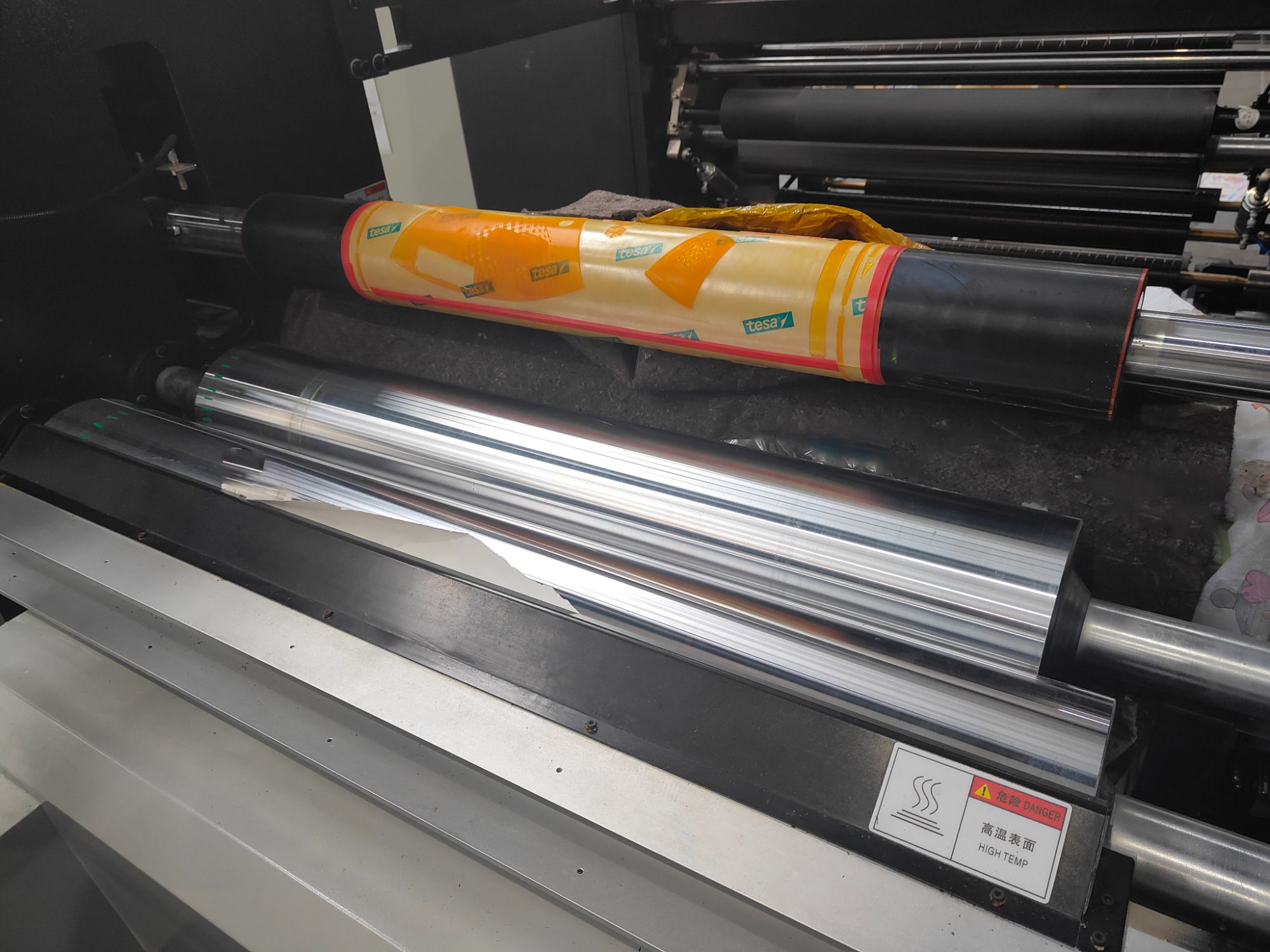

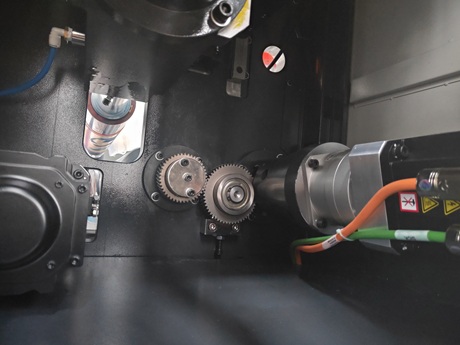

| Printing Unit of Inline Flexo Press for Hamburger Wrapping Paper | |
 |  |

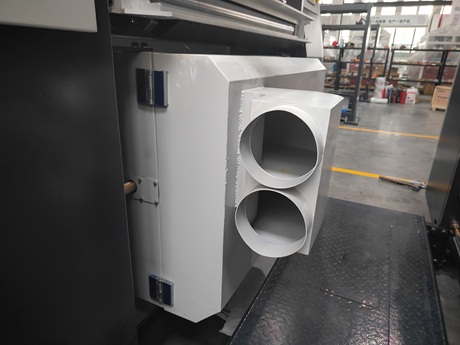

| Drying System of Inline Flexo Press for Surgical Mask Non Woven Fabric | |
 |  |

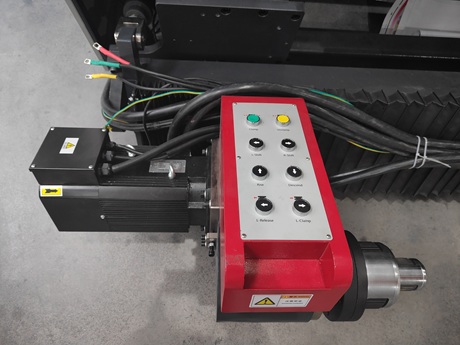

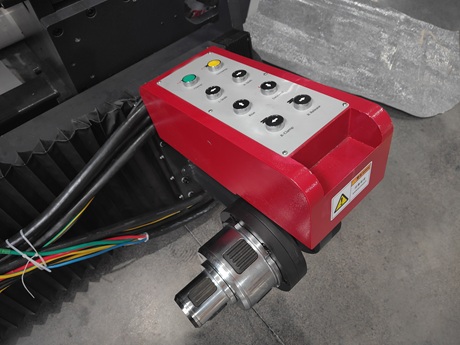

| Rewinding Unit of Inline Flexo Press for Non Woven Shopping Bags | |
 |  |

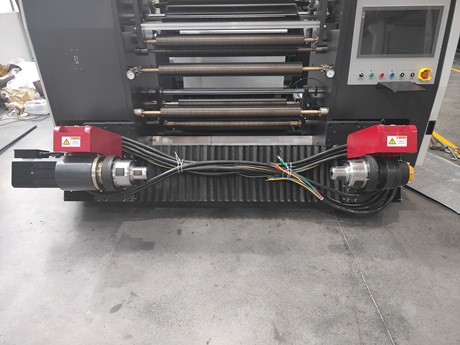

| Rewinding Unit of Inline Flexo Press for Paper Napkin | |
Q&A
- 1. How do your inline type flexo press drive the cylinder rollers in these printing units?
Our machine printing unit include plate cylinder, impression cylinder, fountain cylinder, anilox cylinder, ink tray, flexible plate and doctor blade. We have two types driving system for these cylinder in printing units, timing belts driving and gear motors driving.(click to know more details)
- 2. How to transfer ink from the ink fountain to the printing substrate?
The fountain cylinder pick up ink and pass ink to the anilox cylinder. The the doctor blade removes the excess ink from the smooth non-engraved portions of the anilox roll and the land areas of the cell walls. Anilox cylinder even spread ink in the surface of the flexible plate. Impression cylinder and plate cylinder press substrate and transfer ink to substrate material surface.
- 3. How does your flexo printing press machine improve color registration accuracy?
Color registration system is one of the most factors in the flexo printing machine. We adopt different method to adjust color registration. The best one is full automatic color registration system which can be run in the control panel. You also can choose other method according your products. If your printing pattern is simple, you also can use manual adjustment. (click to know more about color registration)
- 4. How to choose a set correct ceramic anilox rollers for our products?
Our flexo printing machine adopt ceramic anilox roller as ink transfer roller. You can send your printing pattern AI format file. Our engineers will provide a solution to you according your patter colors and saturation requirements. Because LPI(line per inch) and BCM very impressed printing quality.
- 5. How is the tension of the unwinding and rewinding unit controlled?
Our flexo printing machine adopt magnetic brakes or motors to control unwinder and rewinder tension. Magnetic brake can well control paper rolls and non woven fabric materials tension. If you need print flexible packaging film, we suggest motor control tension. Because motor output tension is more sensitive which is better for pressure sensitive material (such as opp, bopp, pvc film, lamination, self adhesive paper rolls).
- 6. Can I add static image inspection system to my flexo printing machine?
Of course you can. The static image inspection system uses a high-resolution camera to capture the printing image in real time, checking whether the "+" pattern printed by each color printing plate roller on the printing material overlaps to ensure color registration accuracy. The operator checks the screen to see whether the "+" pattern of each color on the printing material overlaps. The static image inspection system also provides real-time feedback and alarms. If there is no overlap, the automatic color registration system can be used to adjust, or the plate roller position can be adjusted manually.
- 7. How do I change the plate roller? How long will it take me?
First, you should stop the flexo printing machine to clean up the ink, paper scraps and other debris around the plate roller.
Then, use a wrench to loosen the fixing bolts at both ends of the plate roller, gently tap to separate the old plate roller from the printing roller, and use a lifting device to move the old plate roller out.
Next, put the new plate roller accurately into the installation position and tighten the bolts.
Finally, adjust the pressure between the new plate roller and the printing roller, and start the machine for the first printing. During the process, check whether the plate roller runs smoothly, whether there is any abnormal noise or vibration, and the printing effect.
Usually, it takes 30 minutes to 1 hour to replace the plate roller. If the plate roller is large or the installation position is complicated, it may take 2 hours or more.
- 8. When I need to print on both sides, do I need to add special structure to this machine?
If you choose to print alternately, you need to equip a turn bar. It can be installed between two adjacent printing units, uses rollers and air pumps to flip the material for printing the back side after the front side.
If you choose to print synchronously (printing on both sides at the same time), two independent printing units are required to process the front and back sides respectively.
The specific configuration of the 4-color flexo printing machine is as follows:
1 color group prints the front side, 3 color groups print the back side: suitable for the situation where the front side printing content is less and the back side printing content is more.
2 color groups print the front side, 2 color groups print the back side: suitable for the situation where the front and back printing content is relatively balanced.
The specific configuration of the 6-color flexo printing machine is as follows:
3 color groups print the front side, 3 color groups print the back side: suitable for the situation where the front and back printing content is relatively balanced and more.
2 color groups print the front side, 4 color groups print the back side: suitable for the situation where the front printing content is less and the back printing content is more.
4 color groups print the front side, 2 color groups print the back side: suitable for the situation where the front printing content is more and the back printing content is less.
- 9. What drying systems can be equip for this model of machine? How do I choose the drying system?
This model machine can be equip with hot air, UV, IR, LED drying system. Different printing materials and inks require different drying systems.
Solvent-based inks are usually dried with hot air drying system or hot air + infrared drying system. Hot air evaporates the solvent and infrared heats the surface. UV inks are usually cured with UV drying system without heating. Water-based inks contain more water and need to be dried with hot air drying system.
Paper materials are generally dried with hot air drying system or hot air + infrared drying system to ensure uniform heating and avoid deformation. Film materials are easy to deform and are often dried with low-temperature hot air drying system. Special materials such as metal foils are often dried with hot air drying system or infrared drying system to prevent damage.
